Creating Art

with a Raspberry Pi


Adventures in trying out hardware, code, and having fun in a personal project

stephanie.lol

Stephanie Nemeth @stephaniecodes

Me:

6 months ago

I visited an art museum.

Jean Tinguely

http://www.flickriver.com/photos/[email protected]/17028829322/

“I wanted something ephemeral that would pass like a falling star...

The work had to just transpire, make people dream and talk, and that would be all.“

- Jean Tinguely

What I dreamed of

What I Built

Phase I: Planning

Project Idea

Identify Skills Needed

Research Hardware

Create A Mockup

Identify My Must-Haves

Assembly my Toolkit

Finally, I'm ready to code!

- Coding Skills

- Artistic Ability

- Experience Working With Hardware

- Wiring/Soldering Experience

Reality Check

Could probably handle the coding

Not a real artist

No experience with hardware

No experience with wiring or soldering

I started googling.

I needed to find a plug and play hardware option.

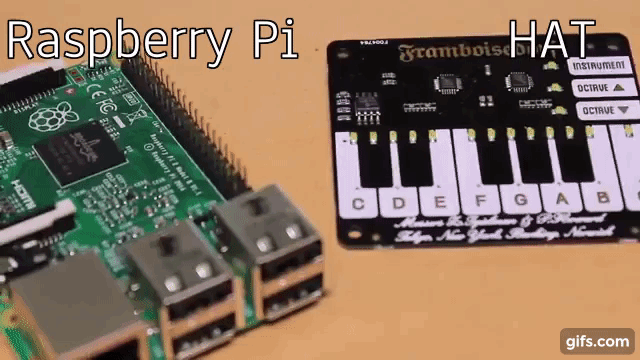

HATS

Hardware Attached on Top

Easily plugs into a Raspberry Pi's GPIO

No Soldering or Wiring!

HATS

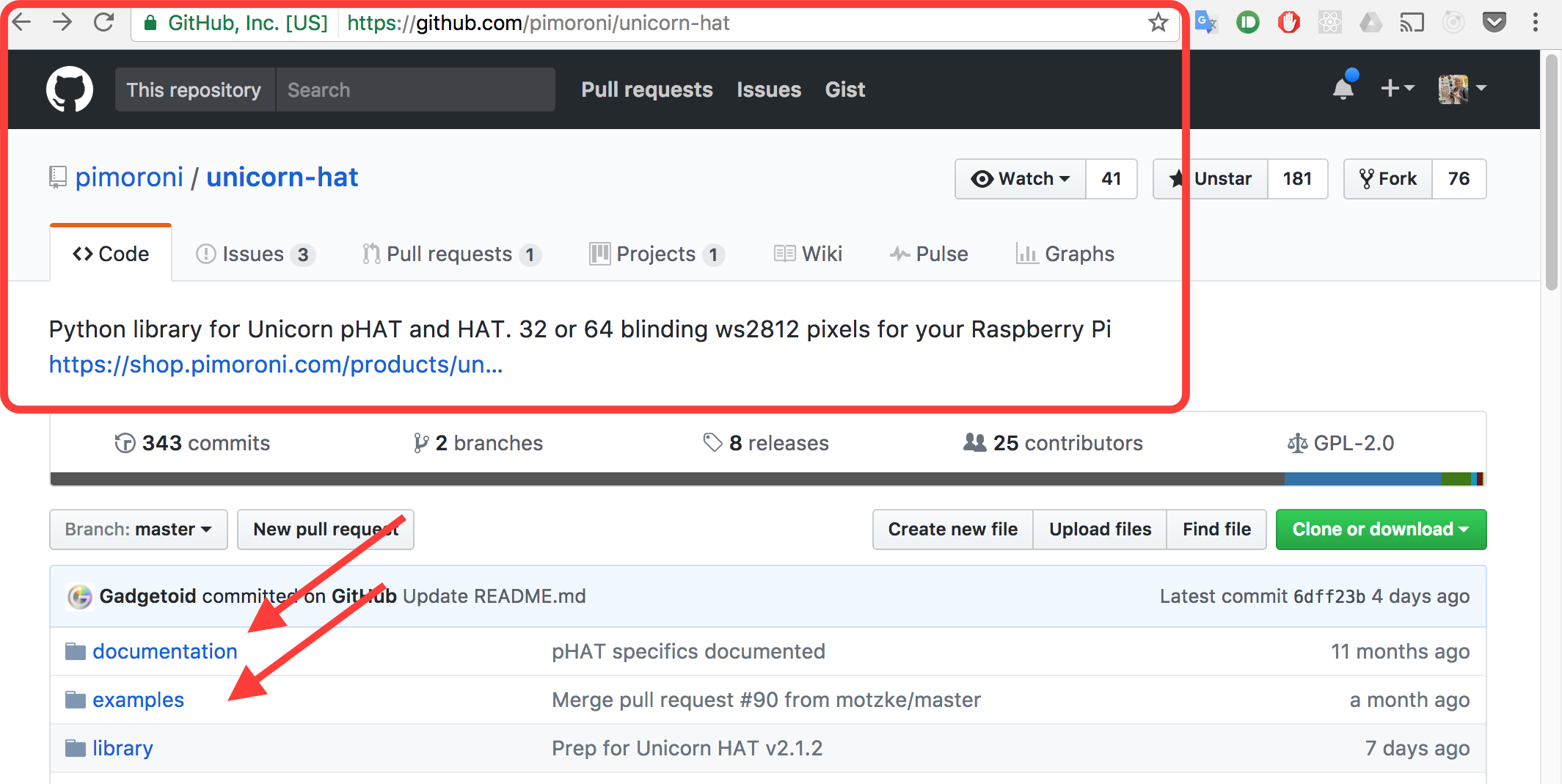

They have established libraries!

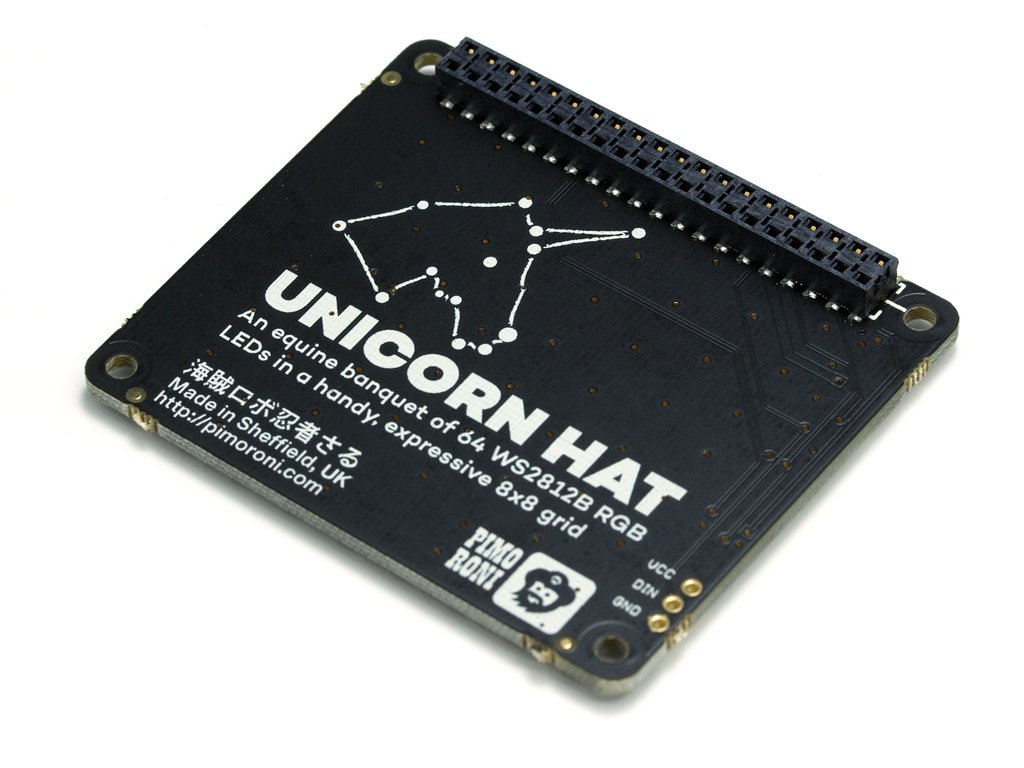

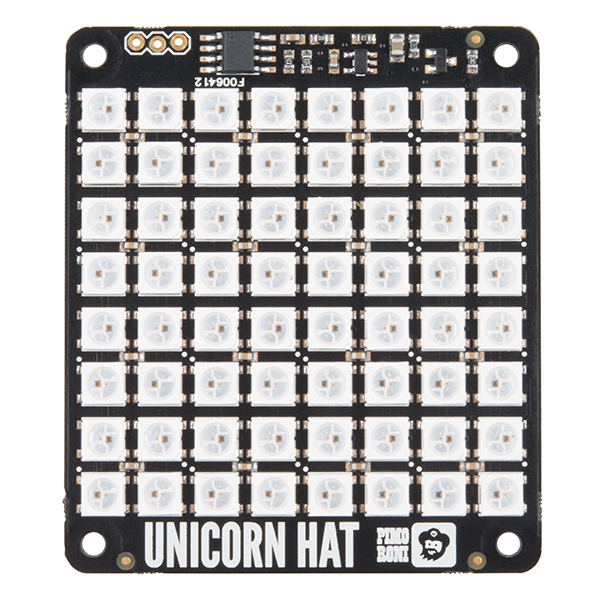

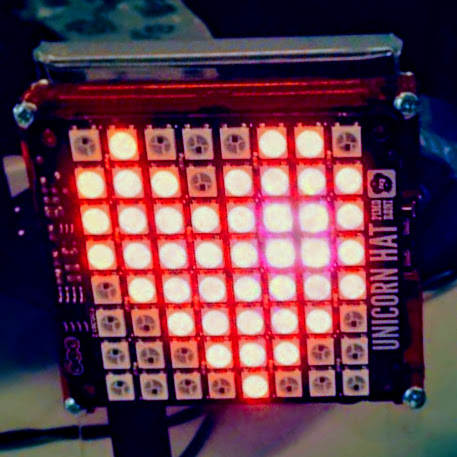

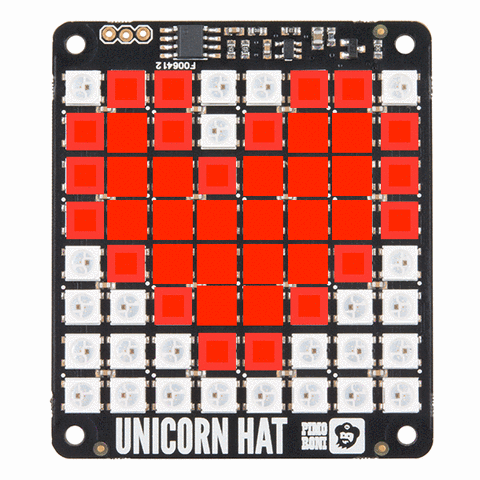

Unicorn HAT

64 LED Lights

I saw Pixel Art

Project Idea

Identify Skills Needed

Research Hardware

Create A Mockup

Identify My Must-Haves

Assembly my Toolkit

Finally, I'm ready to code!

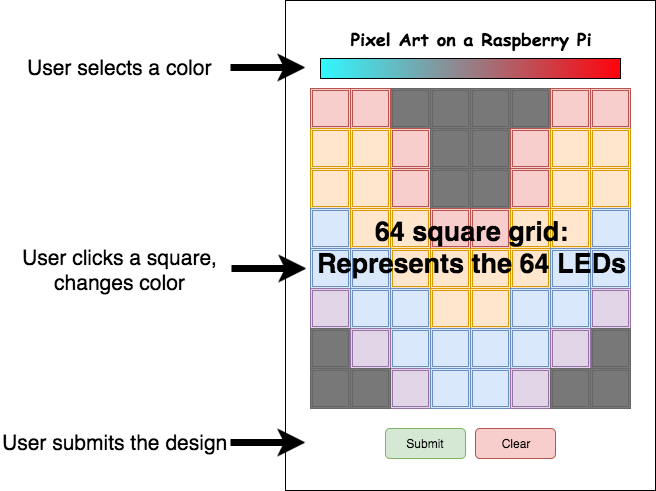

A Mockup of My Idea

Project Idea

Identify Skills Needed

Research Hardware

Create A Mockup

Identify My Must-Haves

Assembly my Toolkit

Finally, I'm ready to code!

Must-Haves

- Anyone in the world could interact with the application

- Users can create colorful pixel artwork!

- Build with Javascript & React to improve my skills

Project Idea

Identify Skills Needed

Research Hardware

Create A Mockup

Identify My Must-Haves

Assembly my Toolkit

Finally, I'm ready to code!

1. User Creates Art

Write the web app in React & React-Native

2. Display the art

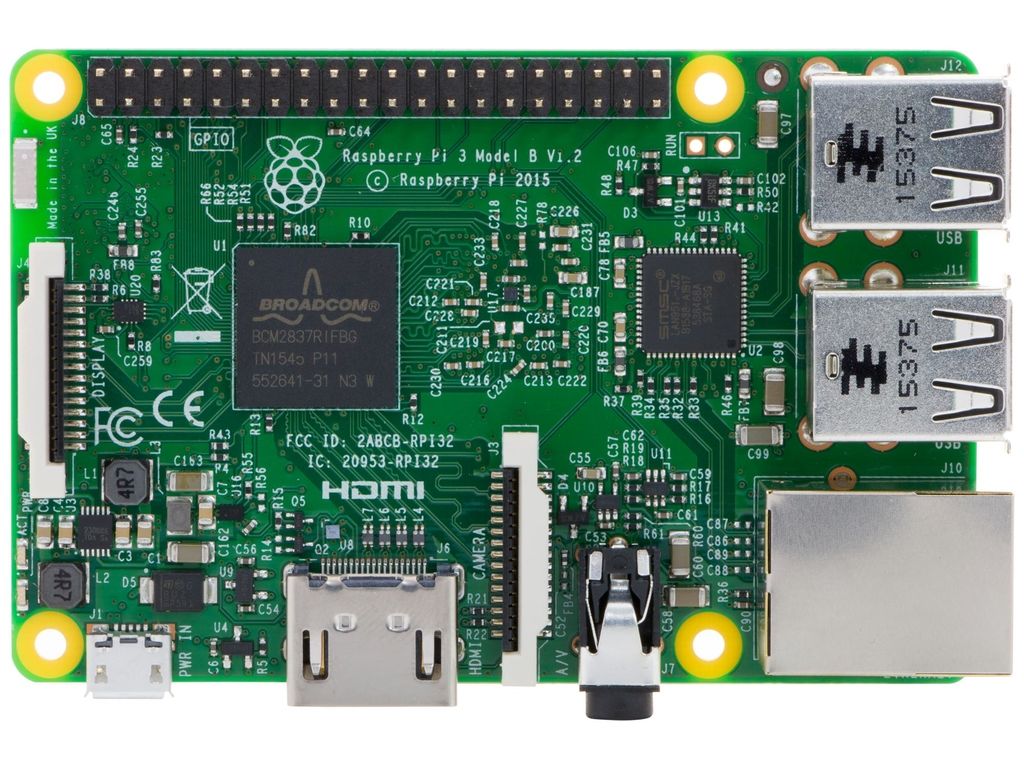

Raspberry Pi + Unicorn HAT + Python

3. How do they communicate?

Other Unicorn HAT projects

- Github repos

- Blog posts

Raspberry Pi project made with React?

- Hard to find examples.

- But, I found one lightning talk video!

Socket.IO

Enables real-time communication between apps

Works on every platform, browser or device 💪

Easy setup: Only a node.js server & client libraries

Has client libraries for Python and React! 🎉

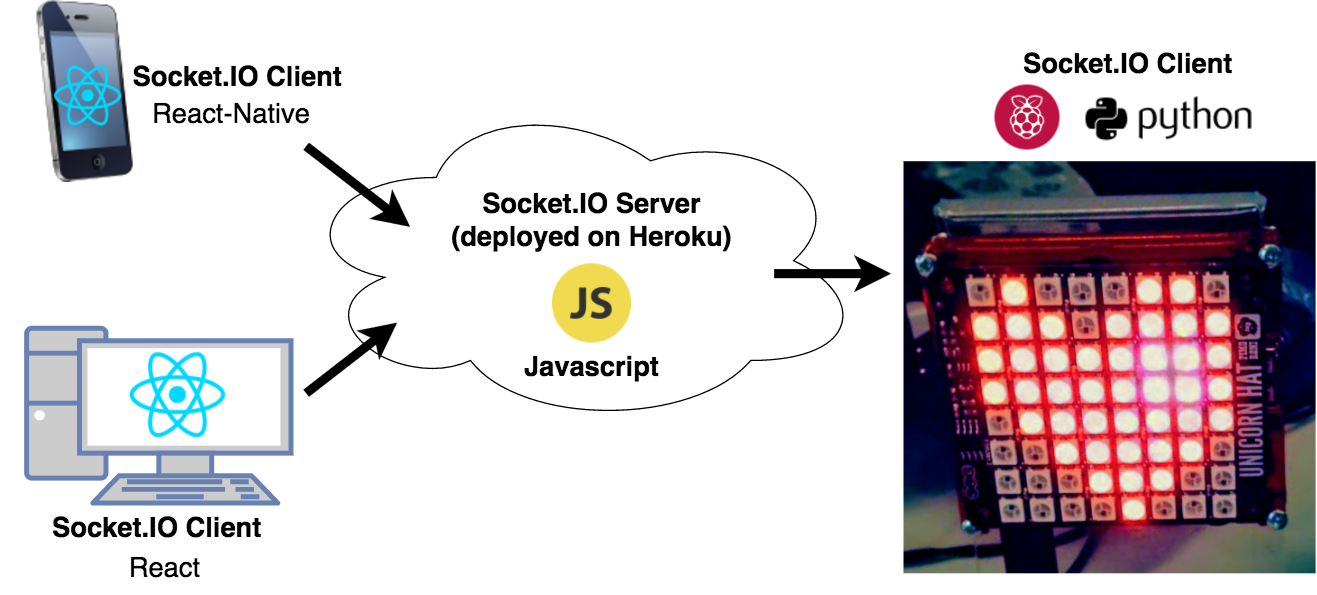

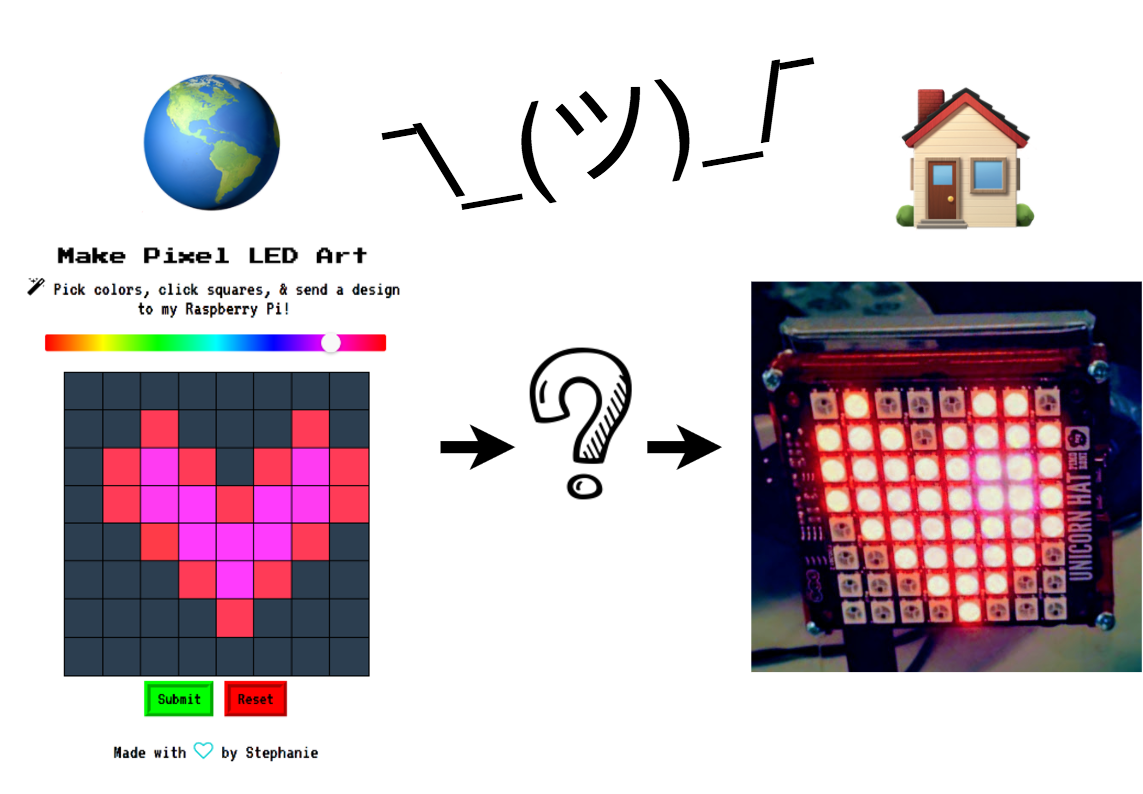

Project Design

Project Idea

Identify Skills Needed

Research Hardware

Create A Mockup

Identify My Must-Haves

Assembly my Toolkit

Finally, I'm ready to code!

Phase II: Building

“Taking on large tasks, or too many tasks at once, overwhelms us. You’re more likely to follow through if the task is small. Once successful, you can then try a new activity or increase the original task’s complexity.“

- Sabina Nawaz

Break Up Goals

- Turn on one LED on the HAT

- Turn on multiple LEDS in 1 color

- Turn on multiple LEDS in multiple colors

Light one LED

Break it down into even smaller goals

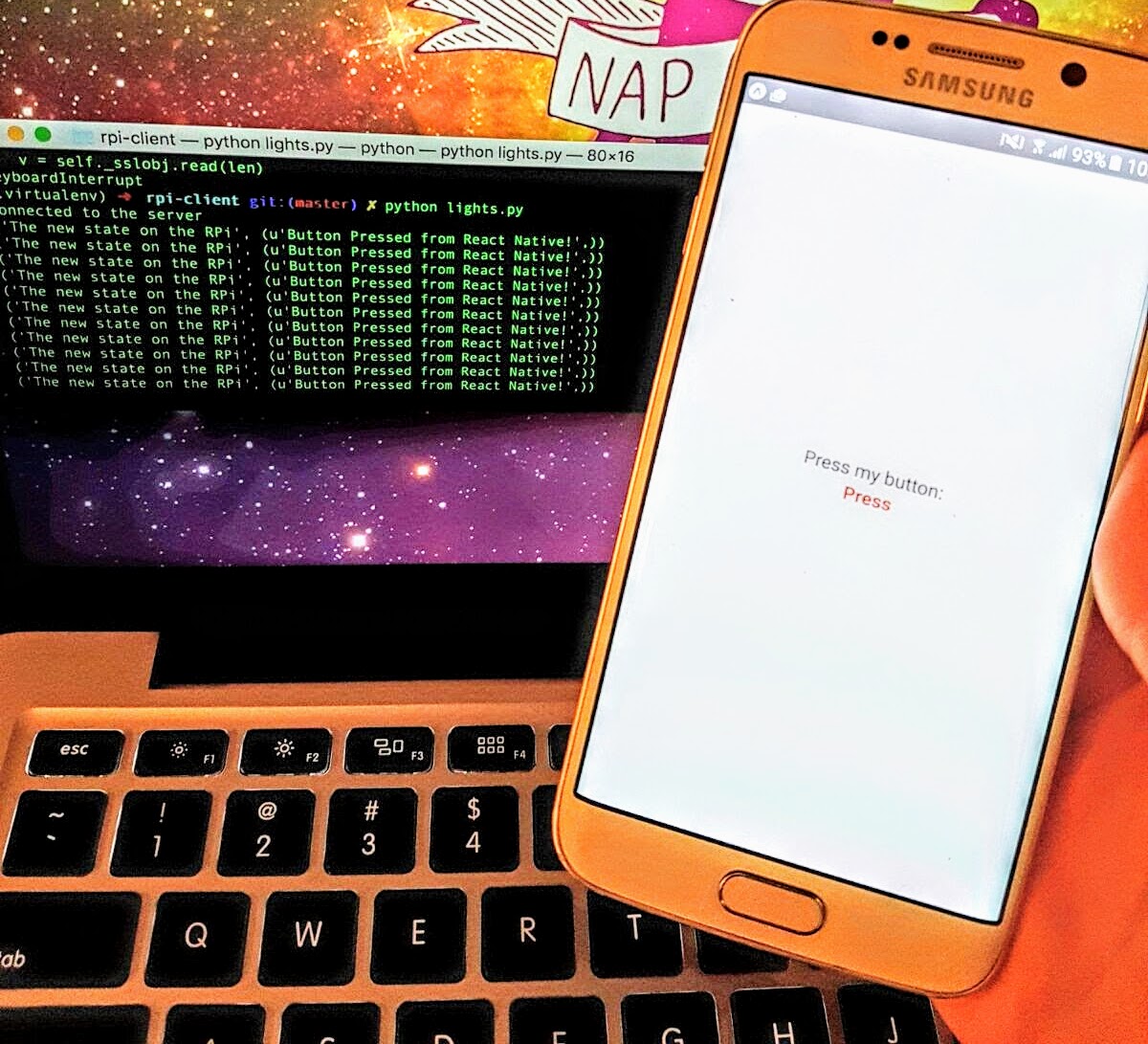

Click a button, send text message to hardware

Click a button, see one pixel light up

Click on grid square, see that pixel light up

Breaking Up Goals

Kept my momentum in the project

Multiple small 'wins' prevents discouragement

Light one LED

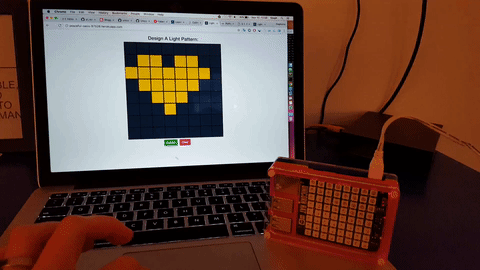

Display pixel art in only ONE color

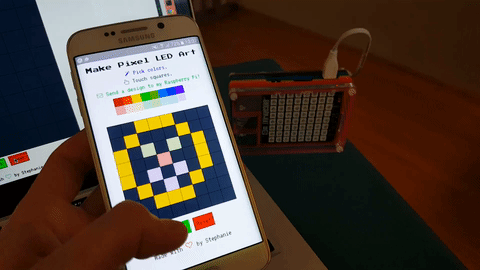

Display pixel art in multiple colors!

Try it out!

https://light-art.herokuapp.com

Final Thoughts

- I had never written for hardware.

- I had never written any Python or React Native.

- I had never built anything using Socket.IO.

- I had never built a server with JavaScript.

- I had never combined so many tools into one project.

Final Thoughts

Despite all these "nevers", I managed to pull off a cool first hardware project using a Pi.


(And I ended up landing a new dev job )

Don't let what you think are your insufficiencies hold you back from tackling the stuff you really want to build.

Thank you!

Now go create something wonderful.
Slides available at stephanie.lol/codeland
